193 nm Wavelength Conversion Laser
The 193 nm wavelength conversion laser is a high-performance narrow-linewidth deep-UV laser created by integrating a proprietary narrow-linewidth fiber laser with advanced, highly efficient frequency-conversion technology. It delivers exceptional beam quality, stable output power, and reliable long-term performance.
Its precise wavelength generation and refined linewidth control make it suitable for demanding scientific and industrial applications.
Key Features
- Deep ultraviolet (DUV) generation technology
- Advanced linewidth control
- High power stability and reliability
Application Areas
- Precision micro-machining
- Medical and biomedical applications
- Semiconductor lithography and processing
Product Information

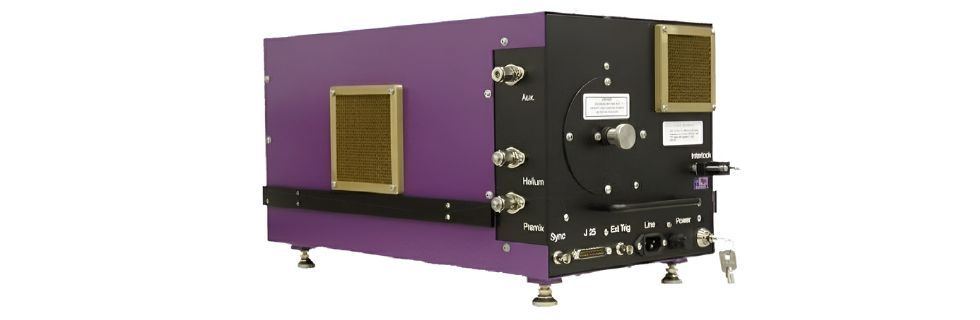

193 nm Wavelength Conversion Laser
The 193 nm wavelength conversion laser is a high-performance narrow-linewidth deep-UV laser created by integrating a proprietary narrow-linewidth fiber laser with advanced, highly efficient frequency-conversion technology. It delivers exceptional beam quality, stable output power, and reliable long-term performance. Its precise wavelength generation and refined linewidth control make it suitable for demanding scientific and industrial applications.
Key features
Highlights- ✓Deep ultraviolet (DUV) generation technology
- ✓Advanced linewidth control
- ✓High power stability and reliability
- ✓Precision micro-machining
- ✓Medical and biomedical applications
- ✓Semiconductor lithography and processing
- ✓Deep-UV 193 nm single- or narrow-linewidth emission
- ✓High optical stability with low long-term drift
Applications
Use casesProduct Deep Dive
Discover the innovative engineering and superior performance that define our laser systems.
193 nm Wavelength Conversion Laser
The 193 nm wavelength conversion laser is a high-performance narrow-linewidth deep-UV laser created by integrating a proprietary narrow-linewidth fiber laser with advanced, highly efficient frequency-conversion technology. It delivers exceptional beam quality, stable output power, and reliable long-term performance. Its precise wavelength generation and refined linewidth control make it suitable for demanding scientific and industrial applications.
Key Features
- Deep ultraviolet (DUV) generation technology
- Advanced linewidth control
- High power stability and reliability
Application Areas
- Precision micro-machining
- Medical and biomedical applications
- Semiconductor lithography and processing
Additional Attribute Highlights
- Deep-UV 193 nm single- or narrow-linewidth emission
- High optical stability with low long-term drift
- Excellent pointing and beam uniformity for sub-micron tasks
- Sealed/low-contamination optical path suitable for cleanrooms
- Temperature-stabilized conversion crystals and optimized alignment
- Configurable pulse or CW behavior depending on model
The 193 nm wavelength conversion laser is a high-performance narrow-linewidth deep-UV laser created by integrating a proprietary narrow-linewidth fiber laser with advanced, highly efficient frequency-conversion technology. It delivers exceptional beam quality, stable output power, and reliable long-term performance. Its precise wavelength generation and refined linewidth control make it suitable for demanding scientific and industrial applications.
